Material: Black/Electro Gal./Hot Dip Gal. Iron Wire
Features: It has fine features of neat & precise, sturdy structure, durable& strongly rust-resistant and fine anti-corrosiveness.

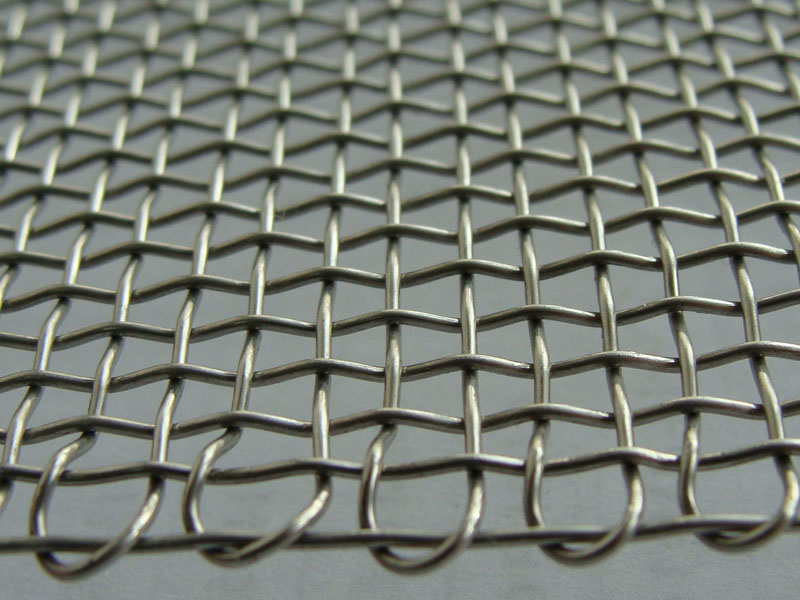

Stainless Steel Wire Mesh Square Opening usually refers to woven stainless steel wire mesh, in Plain Weave or Twill Weave patterns.
Procedures: Hot dip Gal. before/after Weaving, Electro Gal. before/after Weaving
PRODUCTS SCOPE:
• Hot-dip galvanized after weaving wire mesh
• Hot-dip galvanized after weaving wire mesh
• Electro galvanized before weaving wire mesh
• Electro galvanized after weaving wire mesh
• Crimped square wire mesh
PACKING: Wrapped with moister-proof paper, Then covered with Hessian cloth.
Applications: It’s widely used in industry, agriculture, building, house fencing, machinery enclosures fence, also used in filtering liquid and gas, sieving grain.
Stainless Steel Wire Mesh Square Opening Specification Reference List | |||
Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
2×2 | 1.8 | 10.9 | 304 or316 |
3×3 | 1.5 | 6.96 | 304 or316 |
4×4 | 1.0 | 5.35 | 304 or316 |
7×7 | 1.00 | 2.63 | 304 or316 |
10×10 | 0.60 | 1.94 | 304 or316 |
12×12 | 0.50 | 1.62 | 304 or316 |
16×16 | 0.40 | 1.19 | 304 or316 |
16×16 | 0.35 | 1.24 | 304 or316 |
18×18 | 0.35 | 1.06 | 304 or316 |
20×20 | 0.40 | 0.87 | 304 or316 |
24×24 | 0.26 | 0.80 | 304 or316 |
30×30 | 0.30 | 0.55 | 304 or316 |
35×35 | 0.17 | 0.56 | 304 or316 |
40×40 | 0.23 | 0.40 | 304 or316 |
50×50 | 0.20 | 0.31 | 304 or316 |
60×60 | 0.15 | 0.27 | 304 or316 |
70×70 | 0.12 | 0.24 | 304 or316 |
80×80 | 0.13 | 0.19 | 304 or316 |
90×90 | 0.12 | 0.16 | 304 or316 |
100×100 | 0.10 | 0.15 | 304 or316 |
120×120 | 0.09 | 0.12 | 304 or316 |
150×150 | 0.063 | 0.11 | 304 or316 |
180×180 | 0.053 | 0.09 | 304 or316 |
200×200 | 0.053 | 0.07 | 304 or316 |
