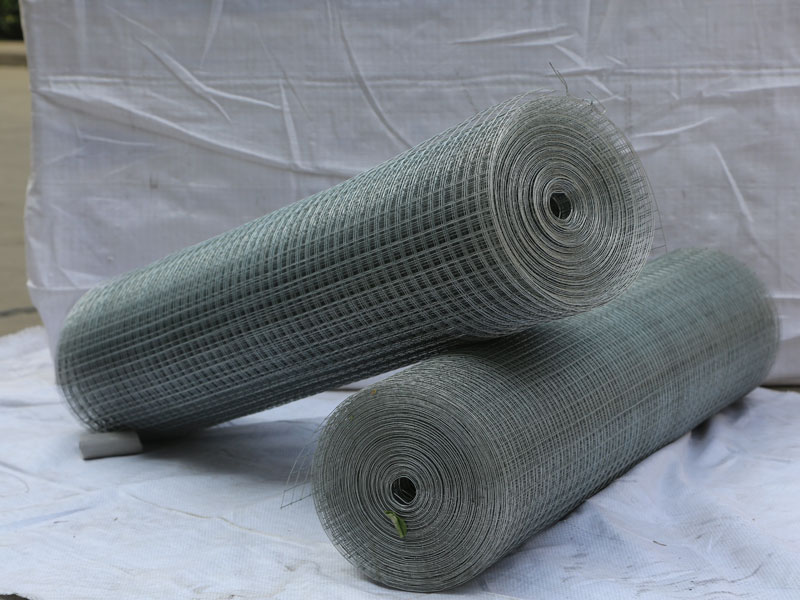

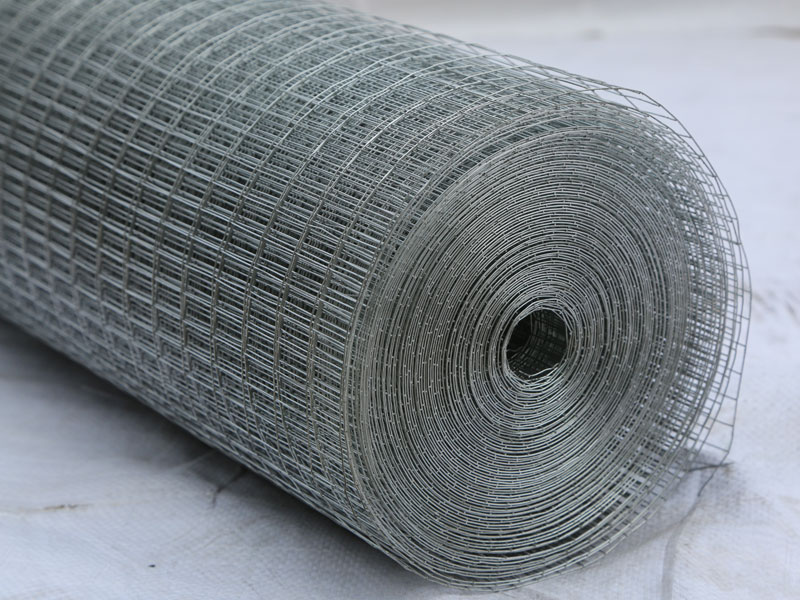

Stainless steel welded wire mesh is durable and strong, the material wire is rust resistant, corrosion resistant and also anti-chemicals, which could be exposed to corrosion for a long time. Because of its natural properties, stainless steel welded wire mesh need no additional finish procedures to protect it.
Material: stainless steel welded wire mesh is usually made of mild steel, bright annealed mild steel, galvanized steel and stainless steel wires.
Features: Compared with other wire meshes, stainless steel welded mesh has many good properties, such as strong structure, anti-corrosion and anti-rust, it is not easy to loosen even be cut into parts or exerted force on the parts.
Application: stainless steel welded wire mesh could be widely used in fishery industry, food drying, marine use, rodent proofing, cages for animals, decoration and so on.
Specification:
Roll Width: 24inch, 36inch, 1metre, 48inch, or 72inch.
Roll Length: 100 feet or 150 feet.
Note: other roll width or roll length can be made according to request.
Specifications of stainless steel welded wire mesh:
Mesh Size | Wire Gauge Diameter | ||
In MM | In Inch | BWG No. | MM |
6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
9.5mm | 3/8Inch | BWG23-19 | 0.64mm – 1.07mm |
12.7mm | 1/2Inch | BWG22-16 | 0.71mm – 1.65mm |
19.1mm | 3/4Inch | BWG21-16 | 0.81mm – 1.65mm |
25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm – 1.65mm |
25.4mm | 1Inch | BWG21-14 | 0.81mm – 2.11mm |
38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm – 2.11mm |
25.4 x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm – 2.11mm |
50.8mm | 2Inch | BWG16-12 | 1.65mm – 2.77mm |
Stainless steel welded wire mesh is durable and strong, the material wire is rust resistant, corrosion resistant and also anti-chemicals, which could be exposed to corrosion for a long time. Because of its natural properties, stainless steel welded wire mesh need no additional finish procedures to protect it.
Material: stainless steel welded wire mesh is usually made of mild steel, bright annealed mild steel, galvanized steel and stainless steel wires.
Features: Compared with other wire meshes, stainless steel welded mesh has many good properties, such as strong structure, anti-corrosion and anti-rust, it is not easy to loosen even be cut into parts or exerted force on the parts.
Application: stainless steel welded wire mesh could be widely used in fishery industry, food drying, marine use, rodent proofing, cages for animals, decoration and so on.
Specification:
Roll Width: 24inch, 36inch, 1metre, 48inch, or 72inch.
Roll Length: 100 feet or 150 feet.
Note: other roll width or roll length can be made according to request.
Specifications of stainless steel welded wire mesh:
Mesh Size | Wire Gauge Diameter | ||
In MM | In Inch | BWG No. | MM |
6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
9.5mm | 3/8Inch | BWG23-19 | 0.64mm – 1.07mm |
12.7mm | 1/2Inch | BWG22-16 | 0.71mm – 1.65mm |
19.1mm | 3/4Inch | BWG21-16 | 0.81mm – 1.65mm |
25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm – 1.65mm |
25.4mm | 1Inch | BWG21-14 | 0.81mm – 2.11mm |
38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm – 2.11mm |
25.4 x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm – 2.11mm |
50.8mm | 2Inch | BWG16-12 | 1.65mm – 2.77mm |
